Weight: 7.79 lbs

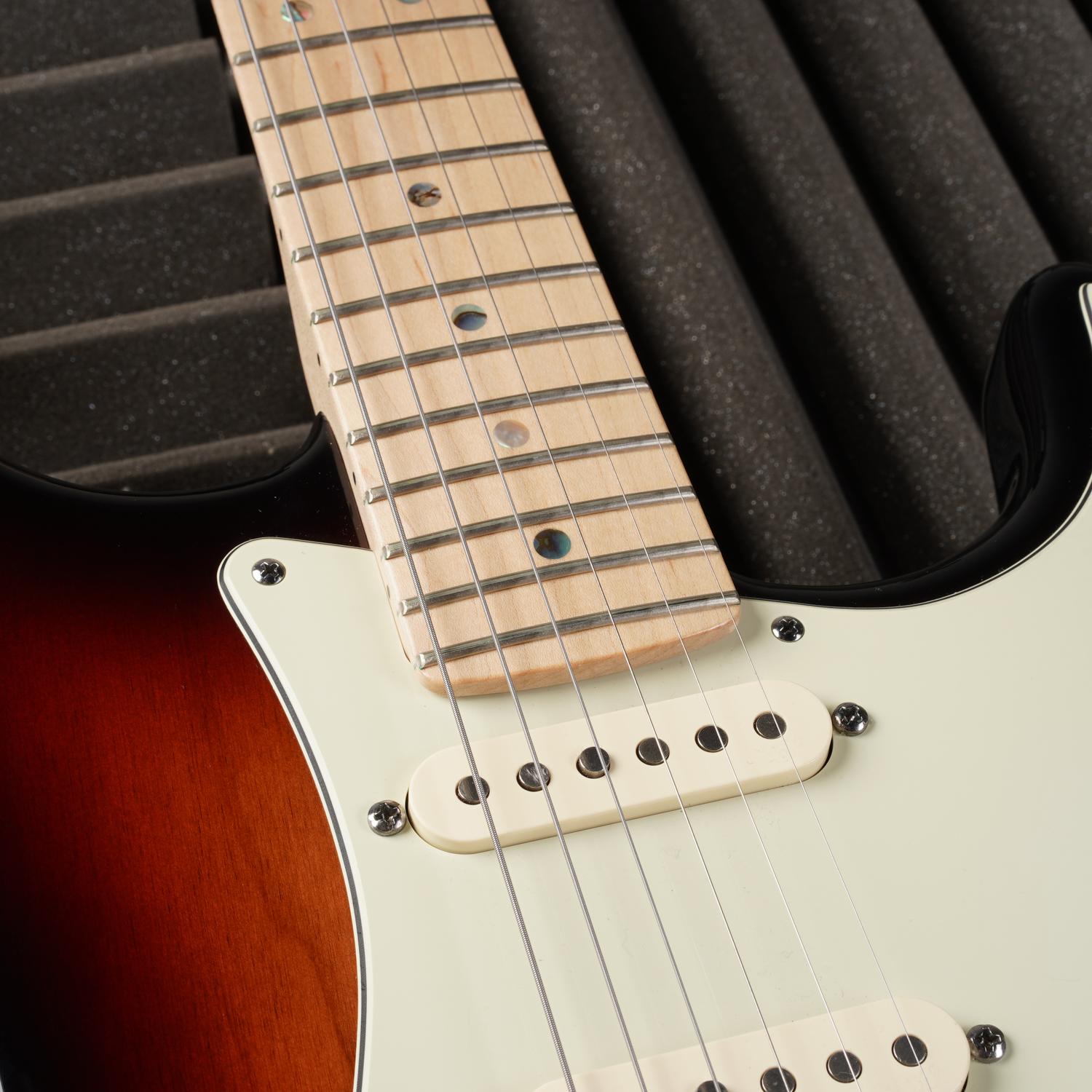

The American Deluxe Series Strat® guitar is all that and more! Featuring a highly figured select alder body, three Samarium Cobalt Noiseless™ Strat® pickups, S-1™ switching system and a two-point synchronized tremolo with stainless steel saddles - this guitar is built for speed! Its modern "C"-shape maple neck has a satin polyurethane finish, abalone inlays and 22 medium jumbo frets.

Body

Select Alder

Body Finish

Urethane

Body Shape

Stratocaster®

Bridge

2-Point Deluxe Synchronized Tremolo with Pop-In Arm

Bridge Pickup

Samarium Cobalt Noiseless™ (SCN) Single-Coil Strat®

Color

3-Color Sunburst

Configuration

SSS

Control Knobs

Aged White Plastic

Controls

Master Volume (with S-1™ Switch), Tone 1. (Neck Pickup), Tone 2. (Middle and Bridge Pickups; No-Load™ Tone control)

Country Of Origin

US

Dimensions

6.00x17.00x44.50 IN

Fingerboard

Maple

Fingerboard Radius

9.5" (241 mm)

Fret Size

Medium Jumbo

Hardware Finish

Chrome

Middle Pickup

Samarium Cobalt Noiseless™ (SCN) Single-Coil Strat®

Model Name

American Deluxe Stratocaster® (2004-2010), Maple Fingerboard, 3-Color Sunburst

Neck Finish

Satin Urethane

Neck Material

Maple

Neck Pickup

Samarium Cobalt Noiseless™ (SCN) Single-Coil Strat®

Neck Shape

Modern "C"

Number of Frets

22

Nut Material

Bone

Nut Width

1.685" (42.8 mm)

Orientation

Right-Hand

Pickguard

3-Ply Mint Green

Pickup Configuration

SSS

Pickup Switching

5-Position Blade and 2-Position Push/Push S-1™

Position Inlays

Abalone Dot

Refinement Neck Material

Maple

Refinement Neck Shape

C Shape

Scale Length

25.5" (64.77 cm)

Series

American Deluxe

String Nut

Bone

Strings

Nickel Plated Steel (.009-.042 Gauges)

Tuning Machines

Fender®/Schaller® Deluxe Staggered Cast/Sealed Locking
